FITTINGS
BW (Butt-Welding) seamless fittings
Stainless steels (austenitic)
RCC-M: Z2 CN 18-10 / Z2 CND 17-12
M3317 levels 1, 2, 3RCC-Mx: X2CrNiMo17-12-2/1.4404
XM 334-8: Level 1, 2, 3COGEMA/AREVA standard: X2CrNi19-11 / X2CrNiMo17-12-2
STD0320: 3N, 2N, 3C1, 2C1, 3C2, 2C2NF-EN 10253-4: 1.4306 / 1.4404
 ASTM A403/B16-9: TP304L/TP316L
Dimensional range

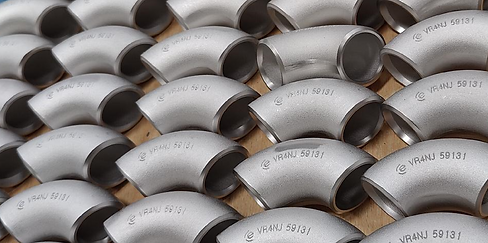

90° elbows - Tees - Reductions - Caps
Ø1/2'' to Ø8'' on stock
Wide choice of Schedules on stock (10S to XXS)
Ø10'' to 16'' on request
Non-alloy steels
RCC-M: P235GH / P265GH
M1151 Level 3
M1149 Level 2COGEMA/AREVA standard: P235GH / P265GH
STD6585: 3N, 2NNF-EN 10253-2: P235GH / P265GH
ASTM A234 WPB
Dimensional range
90° elbows - Tees - Reductions - Caps
Ø13.5 to Ø219.1 on stock
Large choice of thickness by diameter
> Ø273 on request
SW machined fittings (Socket-Welding)
Stainless steels (austenitic)
RCC-M: Z2 CN 18-10 / Z2 CN 19-10 N2 / Z2 CND 17-12 / Z2 CND 18-11 N2
M3306 levels 1, 2, 3
M3301 Levels 1, 2, 3RCC-Mx: X2CrNi18-9 / X2CrNiMo17-12-2
XM 332-2: Level 1, 2, 3
XM 335-1: Level 1, 2, 3COGEMA/AREVA standard: X2CrNi19-11 / X2CrNiMo17-12-2
STD0199: 3N, 2N, 3C1, 2C1, 3C2, 2C2
STD0198: 3N, 2N, 3C1, 2C1, 3C2, 2C2NF-EN 10272: 1.4307 / 1.4404
ASTM A182: TP304L / TP316L
Dimensional range
90° elbows - Tees - Sleeves - Inserts - Bosses - Plugs - union fittings
3000# and 6000# B16-11 series – SW / NPT / GAS / UNF – Male/Female combinations
Ø1/4'' to Ø2'' SW and NPT on stock
> Ø2'' on request
Non-alloy steels
RCC-M: P265GH / P295GH / P280GH / A42AP / A48AP
M1122 Level 2, 3
M1122 Bis Level 2, 3NF-EN 10273: P265GH / P295GH
ASTM A105
Dimensional range
90° elbows - Tees - Sleeves - Inserts - Bosses - Plugs - union fittings
3000# and 6000# B16-11 series – SW / NPT / GAS / UNF – Male/Female combinations
Ø1/4'' to Ø2'' SW and NPT on stock
> Ø2'' on request
